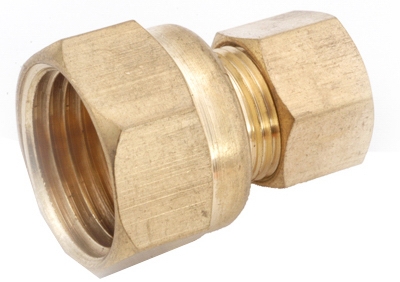

Name: Connector, Brass, Compression, Female, 3/8 x 3/8-In.
SKU: 122908
Price: 4.29 USD

3/8" Compression x 3/8" Female Pipe Thread, Brass Connector, Lead Free Compliant Product Which Meets Public Law 111-380, Bulk.

Compliant Product Which Meets California AB-1953
Compliant Product Which Meets Vermont SB-152
Three Piece Construction - Nut, Sleeve (Or Ferrule) And Body
Use With Copper, Aluminum Or Plastic Tubing (Plastic requires 60P Sleeve And 61P Insert)
Negavtive 65 Degreees to Plus 250 Degrees F. Temperature Range
Standard Fittings Use Short Nuts. Long Nuts Are Available For Higher Vibrations Applications.
To Buy Compressions Fittings with Long Nut, Please Add a "1" In Front Of The Part Number. (i.e. 68 = 168)
Easy To Disassemble, No Flaring Tool Required
Primary Uses: Water, Gasoline, Oil and Vacuum Lines
To Assemble:
1. Cut Smooth, Square End On Tubbing
2. Slide Nut, Then Sleeve Onto Tube. Thread Must Face End.
3. Insert Tube Into Fitting
4. Thread Nut Onto Fitting Until Snug, then as follows: Up To 1/4 Inch = 1-1/4 Turns, 5/16 Inch = 1-3/4 Turns, 3/8 Inch and Up = 2-1/4 Turns
